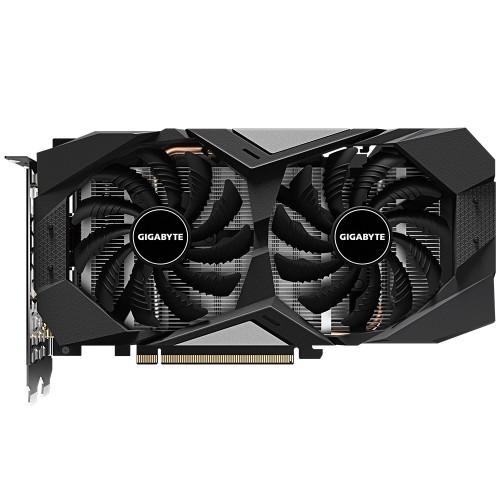

Gigabyte GeForce GTX 1660 OC 6GB GDDR5 Graphics Card (WITH FULL PC)

Gigabyte GeForce GTX 1660 OC 6GB GDDR5 Graphics Card

Gigabyte GeForce GTX 1660 OC GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. Gigabyte GeForce GTX 1660 OC airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature. Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference. Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan. Gigabyte GeForce GTX 1660 OC cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements. The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling. Gigabyte GeForce GTX 1660 OC composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

Gigabyte GeForce GTX 1660 OC 6GB GDDR5 Review

For the longest time the PC gaming world was experiencing a drought of new graphics cards, and now it seems we’re amid the great flood. Nvidia introduced the Gigabyte GeForce GTX 1660 OC just a few weeks ago, and now GeForce GTX 1660 cards are coming out of the woodwork. Technically, the GeForce GTX 1660 is still part of the Nvidia Turing family, but it lacks many of the features found on its siblings. Among the things you won’t find on this GPU compared to other Turing cards (RTX or GTX), are ray-tracing cores, Tensor cores and even GDDR6 class memory. That’s right – all you get is the same GDDR5 memory operating at 8Gbps speeds, as found on the original GeForce GTX 1060. Having said all that, this graphics card still features a TU116 GPU fitted with Turing-based shaders. Although the GeForce GTX 1660 features a lower number of CUDA cores – and don’t forget about the slower memory – than its GTX 1660 Ti sibling, it gains higher base and boost clock speeds to make up for its deficiencies. Gigabyte GeForce GTX 1660 OC Gigabyte model we’re testing here also adds a little extra special sauce with a 1,830MHz factory overclock, which makes it a noticeable few ticks faster than the GPU’s reference 1,785MHz boost clock. Additionally, this model comes with dual Windforce 2X fans and a beefier heatsink, which you typically wouldn't expect to find on an entry-level priced graphics card. Despite the GeForce GTX 1660 looking like it’s just a GTX 1060 with a new coat of paint, this card offers some astounding leaps in performance. That said, the GTX 1660 doesn’t outpace the GTX 1070 in the same way the GTX 1660 Ti has. More importantly, the Nvidia GTX 1660 absolutely demolishes the AMD Radeon RX 590, a GPU that currently costs significantly more. Outside of benchmarks, the GTX 1660 can handle modern games, and even at QHD (1440p) resolutions. Hitman 2 played at 60 to 70 frames per second (fps) without protest – and if you’re only playing at Full HD (1080p), you can expect an even smoother 90 to 100fps experience. 4K gaming (3840 x 2160) is possible with the Nvidia GTX 1660, although in our experience Hitman 2 would often drop below 30fps, resulting in unpleasantly clunky gameplay. Our test bench equipped with the GTX 1660 ran into a little more difficulty with running Anthem at 1440p and 2160p, so we saw frame rates fall to as low as 30 and 20fps respectively. However, when we stuck to a 1080p resolution we saw Anthem run at a much more consistent 50fps. All in all, we would say the GeForce GTX 1660 is a graphics card primarily designed for Full HD experiences; however, you can push it to play games at 2K, and, rarely, 4K, resolution depending on how graphically demanding they are. Putting games and benchmarking aside, the GTX 1660 also represents the cheapest way to take advantage of Nvidia’s new NVENC encoder for streaming. Between bit-rate savings of 25% for HEVC and 15% for H.264, this is one graphics card we would recommend to new gamers who also want to dabble in livestreaming. When we first started reviewing the Gigabyte GeForce GTX 1660 OC 6G, we weren’t really expecting much. Not only was it basically a cut-down GeForce GTX 1660 Ti, it didn’t even feature faster memory than that found in the GeForce GTX 1060 it’s meant to replace – which meant we were even more impressed once we saw the benchmark numbers. Not only is the GTX 1660 a remarkably better graphics card, it’s also much more affordable than its predecessor, and the low cost puts it in easy reach for many gamers, especially newcomers. Although it doesn’t feature any of the fancy new features Nvidia has promised with Turing, the new shaders and underlying TU116 GPU in this card give it all the oomph it needs to deliver noticeably better performance – not to mention improved streaming. Up until now we've still been recommending the last-generation Nvidia GTX 1060 or GTX 1050 Ti to aspiring PC gamers, but the GeForce GTX 1660 has taken the crown as the absolute best entry-level graphics card you can buy right now.

Specifications:

Video Memory Specifications
Type	GDDR5
Size	6 GB
Resolution	7680x4320@60Hz
Core Clock	1830 MHz (Reference Card: 1785 MHz)
Memory Clock	8002 MHz
BUS Type	192 bit
Memory Interface	PCI-E 3.0 x 16
CUDA Cores	1408
Interface
Display Port	3 x DisplayPort 1.4
HDMI	1 x HDMI 2.0b
Power Specifications
Connectors	8 Pin x 1
Recommended PSU	450W
Display Option
Multi Display	4
Application Programming Interfaces
DirectX	12
OpenGL	4.6
Physical Specifications
Dimensions	224 x 121 x 40 mm
Warranty
Manufacturing Warranty	2 Years
